Model
|

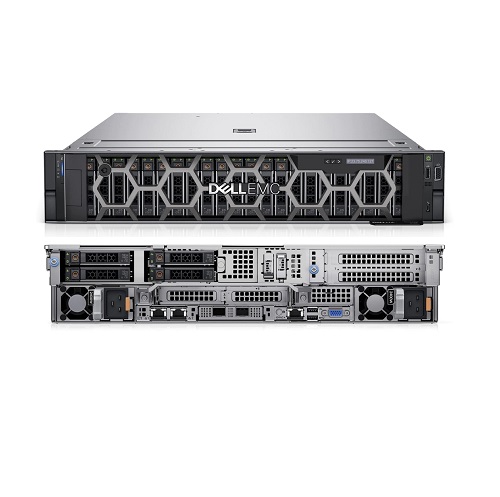

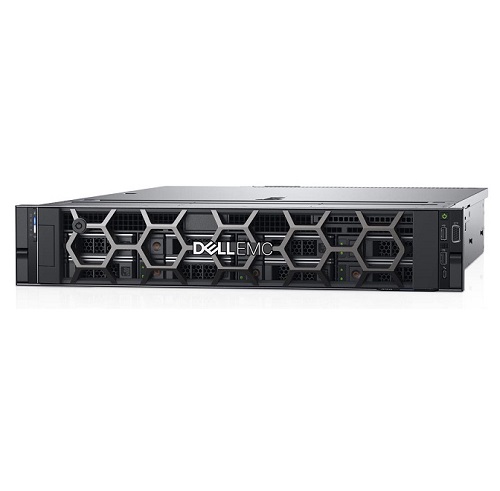

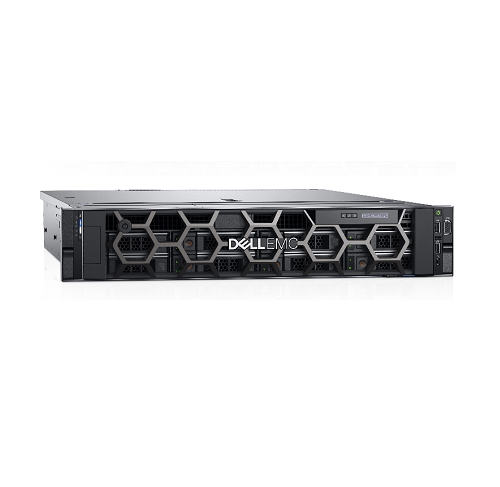

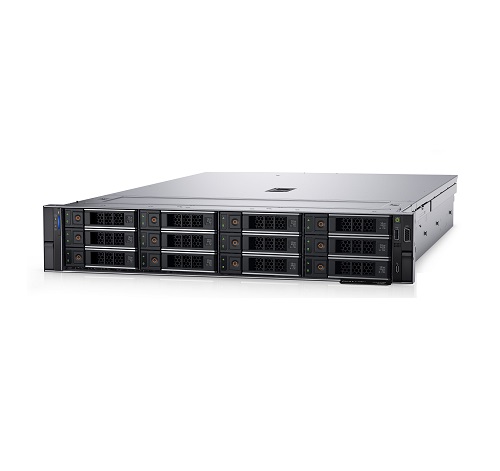

Dell PowerEdge R750xs Rack Server
|
Processor
|
Up to
two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per
processor
|
Operating System
|
Canonical®
Ubuntu® Server LTS
Citrix®
Hypervisor®
Microsoft®
Windows Server® with Hyper-V
RedHat®
Enterprise Linux
SUSE®
Linux Enterprise Server
VMware
ESXi®
|
Chipset
|
Intel® C620A
chipset
|
Memory
DIMM Speed
|
Up to
3200 MT/s
|
Memory Type
|
UDIMM
|
Memory Module
Slots
|
16 DDR4
DIMM slots
|
Maximum RAM
|
RDIMM 1
TB
|
Storage
Front Bays
|
Up to 8
x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
Up to 12
x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8
x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 16
x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16
x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe (HDD/SSD) max 184.32 TB
|
Rear bays
|
Up to 2
x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
|
Storage Controllers
Internal Controllers
|
PERC
H345, PERC H745, PERC H755, PERC H755N, HBA355i
|
External
Controllers
|
PERC
H840, HBA355e
|
Software RAID
|
S150
|
Internal Boot
|
Boot
Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module/ USB 3.0
|
Security
|
Cryptographically
signed firmware
Secure
Boot/Secure Erase/Silicon Root of Trust
System
Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM
1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
|
Management
|
Embedded / At-the-Server
iDRAC9
iDRAC
Service Module
iDRAC
Direct
Quick
Sync 2 wireless module
|
Mobility
OpenManage
Mobile
|
Mobility
OpenManage Mobile
|
Tools
iDRAC
RESTful API with Redfish
IPMI
RACADM
CLI
System
Update Utility
Update
Catalogs
|
OpenManage Software/ OpenManage
Enterprise
OpenManage
Power Manager plugin
OpenManage
SupportAssist plugin
OpenManage
Update Manager plugin
|
OpenManage Integrations
BMC®
Truesight
Microsoft®
System Center
RedHat®
Ansible® Modules
VMware®
vCenter and vRealize Operations Manager
|
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network
Manager IP Edition
Micro Focus®
Operations Manager
Nagios® Core/ Nagios®
XI
|
Power Supplies
|
600 W
DC/240 V
600 W
Platinum AC/100 - 240 V
800 W
DC/240 V
800 W
Platinum AC/100 - 240 V
1100 W
DC/-48–(-60) V
1100 W
DC/240 V
1100 W
Titanium AC/100 - 240 V
1400 W
DC/240 V
1400 W
Platinum AC/100 - 240 V
Hot plug
power supplies with full redundancy option
Up to 6
hot swap fans
|
Ports
|
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
|
Front Ports
1 x dedicated iDRAC Direct micro-USB
1 x USB
2.0/ 1 x VGA
|
Rear Ports
1 x USB 2.0
1 x USB
3.0
1 x
Serial (optional)
2 x
Ethernet
1 x VGA
|
Internal Ports
1 x USB 3.0 (optional)
|
Slots
|
3 x Gen 4 PCIe slots, 1 x Gen3
PCIe slot
|
Video Card
|
1 x VGA
|
Bezel
|
Optional LCD bezel or security
bezel
|
Form Factor
|
2U Rack Server
|
Dimensions &
Weight
|
Height: 86.8 mm (3.41 inches)
|
Width: 482.0 mm (18.97 inches) — with bezel
|
Depth: 707.78 mm (27.85 inches) –
without bezel
721.62 mm (28.4 inches) – with
bezel
|
Weight: Max 28.6 kg (63.0 lbs.)
|
