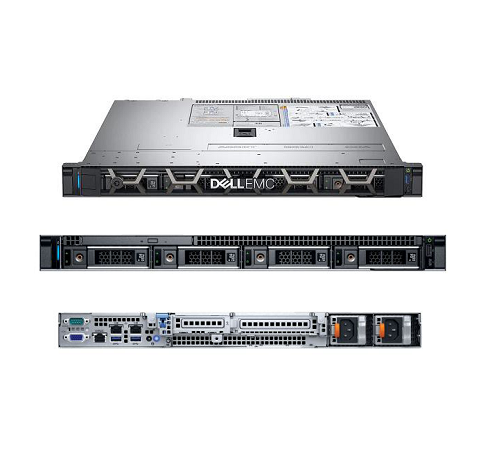

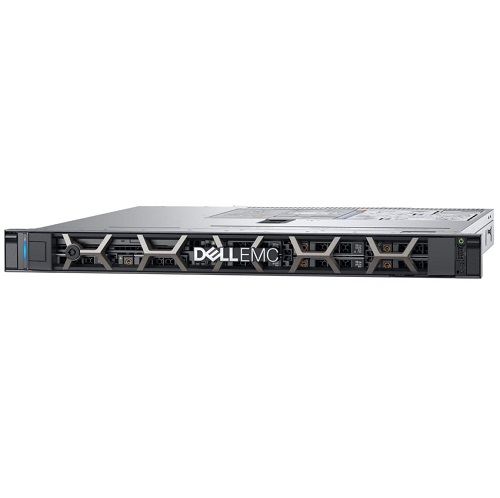

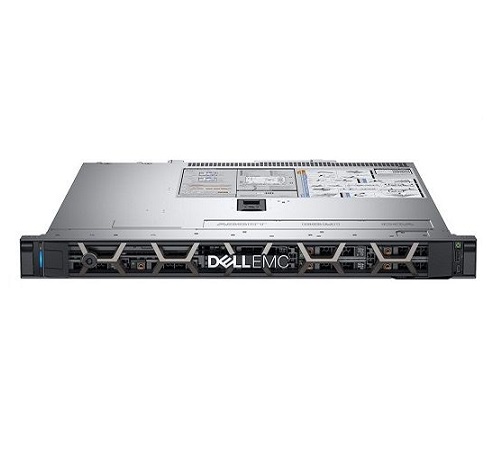

Dell PowerEdge R340 Rack Server

Processor

·         Up to one Intel® Xeon® E-2200 product family processor with
up to 8 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® LTSC with Hyper-V  (2016 and 2019)
Oracle® Linux
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Memory
DIMM Speed

Up to 2666 MT/s

Memory Type

UDIMM

Memory Module Slots

4 UDIMM slots

Maximum RAM

UDIMM 64GB

Storage
Front Bays

Up to 8 x 2.5” hot-plug SAS/SATA (SSD)
Up to 4 x 3.5” hot-plug SAS/SATA (SSD)

Storage Controllers
Internal Controllers

PERC H330, H730p, HBA330

External Controllers

12Gbps SAS HBA

Software RAID

S140

Internal Boot

Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Internal Dual SD Module (IDSDM)6:
2x microSD (16GB, 32GB or 64GB)
1x microSD (16GB, 32GB or 64GB)

Security

Cryptographically signed firmware
Secure Boot/Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Embedded / At-the-Server
iDRAC9/iDRAC Direct
iDRAC RESTful API with Redfish

Management

Consoles
OpenManage Enterprise
OpenManage Power Center

Mobility
OpenManage Mobile

Dell EMC RACADM CLI/Dell EMC Repository Manager
Dell EMC System Update/Dell EMC Server Update Utility
Dell EMC Update Catalogs/iDRAC Service Module
IPMI Tool/OpenManage Server Administrator

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
Micro Focus® Operations Manager I
Nagios® Core/Nagios® XI

Power Supplies

350W Platinum/550W Platinum
Hot plug power supplies with full redundancy option

Slots

2 x PCIe Gen3 slots

Form Factor

1U Rack Server

Dimensions & Weight

Width:  434.0mm (17.1")

Depth: 595.6mm (23.5")

Weight:13.6kg (29.9lbs.)
*Dimensions do not include bezel
