Model
|
Dell Poweredge R440/Technical Specification
|
Processor
|
Up to two Intel® Xeon® Scalable processors, up to 22 cores per
processor
|
Memory
|
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to
2666MT/s, 512GB max
Supports registered ECC DDR4 DIMMs only
|
Storage controllers
|
Internal controllers: PERC H330, H730p, H740p, HBA330, Software
RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
|
Drive bays
|
Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to
4 NVMe SSD max 48TB or up to 4 x 3.5 SAS/SATA HDD max 40TB Optional DVD-ROM,
DVD+RW
|
Power supplies
|
Gold 450W, Platinum 550W
Hot plug power supplies with full redundancy
|
Sizing
|
Form factor: Rack (1U) Chassis: 728.23 mm Front Bezel to Rear
PSU Handle
714.58 mm Front plate (no bezel) to Rear PSU Handle
|
Bezel
|
Optional LCD bezel or security bezel
|
Embedded / At-Server
|
iDRAC9 with Lifecycle Controller iDRAC REST API with Redfish
iDRAC Direct Quick Sync 2 BLE/wireless module
|
Consoles & Mobile
|
OpenManage Enterprise (available soon) OpenManage Mobile
OpenManage Essentials OpenManage Power Center
|
Integrations
|
OpenManage integrations: Microsoft® System Center, VMware®
vCenter™, BMC Software
|
Connections
|
OpenManage connections: Nagios & Nagios XI,Oracle Enterprise
Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli®
Network Manager, CA Network and Systems Management
|
Tools
|
Dell EMC Repository Manager iDRAC Service Module
Dell EMC System Update OpenManage Server Administrator
Dell EMC Server Update Utility OpenManage Storage Services Dell EMC Update
Catalogs
|
Security
|
TPM 1.2/2.0 optional Secure Boot
Cryptographically signed firmware System Lockdown
Hardware Root of Trust System Erase
|
I/O & Ports
|
Network daughter card options
2 x 1GE LOM (optional) OCP 2 x 10 GE SFP+ or BaseT or 2 x 1GE
Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct
USB

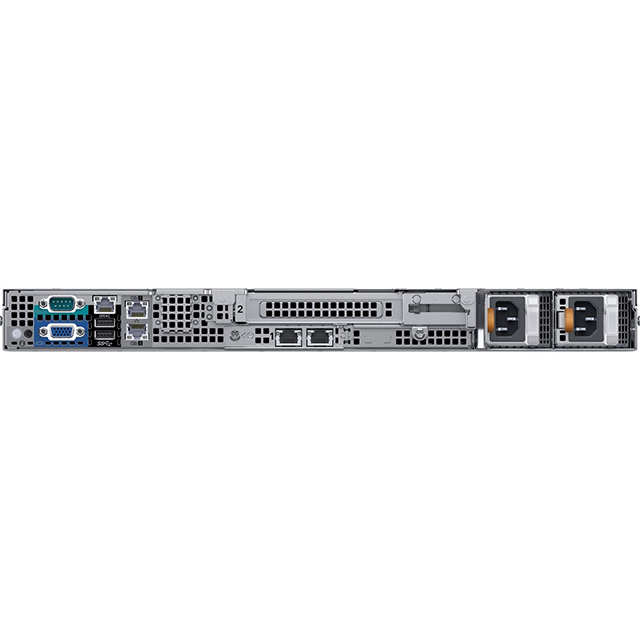

Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Riser options also available include 2 x HH/HL or 1 x FH/HL
|
Supported operating systems
|
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
|
OEM-ready version available
|
From bezel to BIOS to packaging, your servers can look and feel
as if they were designed and built by you. For more information, visit
Dell.com/OEM.
|
Recommended support and services
|
Choose Dell ProSupport Plus for critical systems or Dell
ProSupport for premium hardware and software support for your PowerEdge
solution. Consulting and deployment offerings are also available. Contact
your Dell representative today for more information. Availability and terms
of Dell Services vary by region. For more information, visit
dell.com/itlifecycleservices.
|
