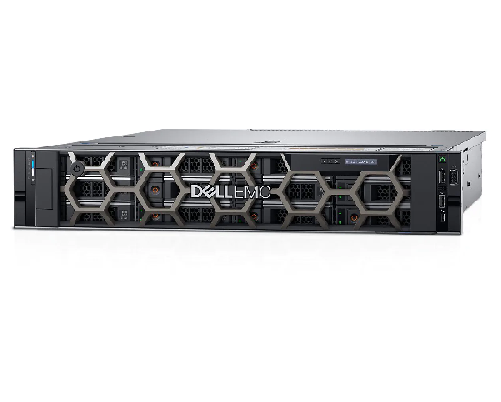

Model
|
Dell EMC PowerEdge
R540 - 12 X 3.5inch
|
|
Processor
|
Up to two Intel® Xeon® Scalable processors, up
to 20 cores per processor
|
|
Memory
|
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM,
speeds up to 2666MT/s, 512GB max
|
|
Storage controllers
|
Internal controllers: PERC H330, H730p, H740p,
HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
|
|
Drive bays
|

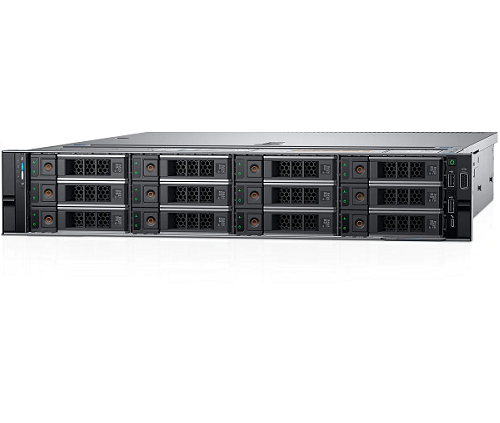

Front drive bays: Up to 12 x 3.5” SAS/SATA HDD
max 120TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
|
|
Power supplies
|
Titanium 750W, Platinum 495W, 750W, Hot
plug power supplies with full redundancy options and 1100W 240HVDC 750W
|
|
Sizing
|
Form factor: Rack (2U)
Chassis max depth: 707.74 mm (without bezel) Max depth: 693.81 mm (with
bezel)
|
|

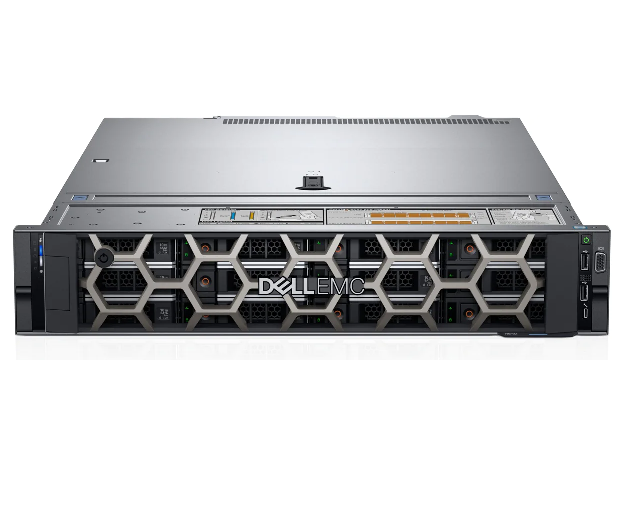

Bezel
|
Optional LCD bezel or security bezel
|
|
Embedded / At-Server
|
iDRAC9 with Lifecycle Controller iDRAC
REST API with Redfish
iDRAC Direct Quick Sync 2 BLE/wireless module
|
|
Consoles & Mobile
|
OpenManage Enterprise (available soon)
OpenManage Mobile
OpenManage Essentials OpenManage Power Center
|
|
Integrations
|
OpenManage integrations: Microsoft® System
Center, VMware® vCenter™, BMC Software
|
|
Connections
|
Nagios Core and Nagios XI, Oracle Enterprise
Manager, HPE Operations Manager i (OMi)
|
|
Tools
|
Dell EMC Repository Manager iDRAC Service Module
Dell EMC System Update OpenManage Server Administrator
Dell EMC Server Update Utility OpenManage Storage Services
Dell EMC Update Catalogs
|
|
Security
|
TPM 1.2/2.0 optional Hardware Root of
Trust
Cryptographically signed firmware System Lockdown
Secure Boot System Erase
|
|
I/O & Ports
|
Network daughter card options: 2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct
USB

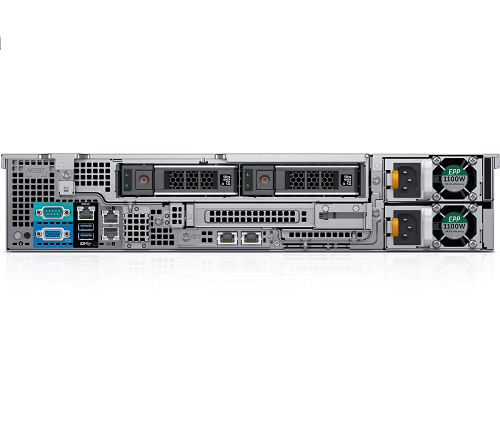

Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
With Optional Riser: Non rear storage config: 1xFH/FL + 1xHH/HL (2U Right
riser) slots + 3 HH/HL slots
Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot
or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
|
|
Supported operating systems
|
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
For specifications and interoperability details see Dell.com/OSsupport.
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server, VMware®
ESXi
|
|
OEM-ready version available
|
