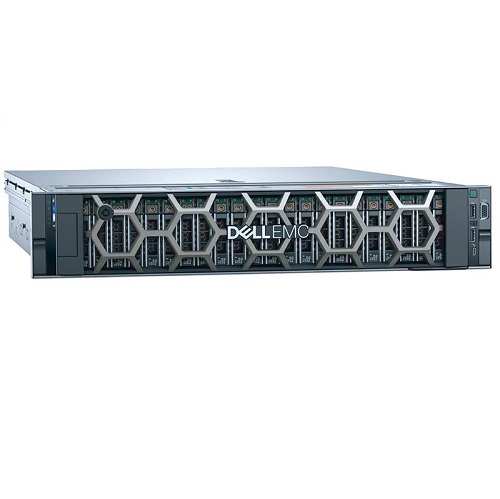

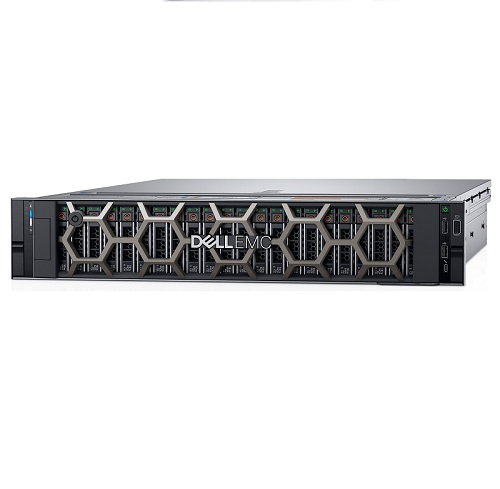

Dell EMC PowerEdge R740xd:
·
Form factor: 2U Rackmount
·
Processors: up to 2 Intel Scalable CPUs or up to 28 cores
·
Memory: 24x DDR4 RDIMM, LR-DIMM (3TB max)
·
NVDIMM support: up to 12 or 192GB
·
Drive Bays
·
Front bays:

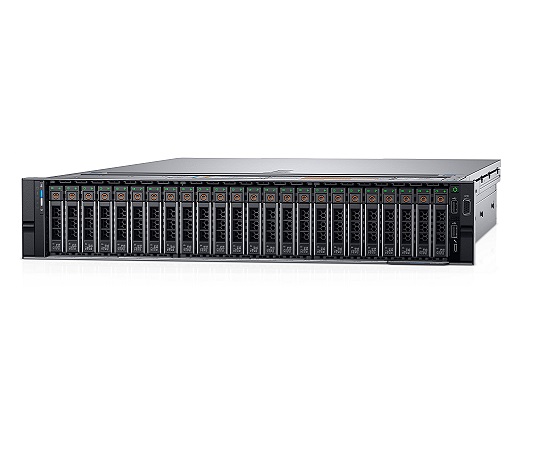

ü Up to 24 x 2.5”
SAS/SSD/NVMe, max 153TB
ü Up to 12 x 3.5” SAS, max
120TB
·
Mid bay:
ü Up to 4 x 3.5” drives, max
40TB
ü Up to 4 x 2.5”
SAS/SSD/NVMe, max 25TB
·
Rear bays:
ü Up to 4 x 2.5” max 25TB
ü Up to 2 x 3.5” max 20TB
·
Storage Controllers
ü Internal controllers: PERC
H730p, H740p, HBA330, Software RAID (SWRAID) S140
ü Boot Optimized Storage
Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
ü External PERC (RAID): H840
ü External HBAs (non-RAID):
12 Gbps SAS HBA
·
Ports
ü Network daughter card
options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
ü Front ports: VGA, 2 x USB
2.0, dedicated IDRAC Direct Micro-USB
ü Rear ports: VGA, Serial, 2
x USB 3.0, dedicated iDRAC network port
·
Video card:
ü VGA
ü Up to 8 x Gen3 slots, Up
to 4 x16
·
GPU Options:
ü Nvidia Tesla P100, K80,
K40, Grid M60, M10, P4, Quadro P4000.
ü AMD S7150, S7150X2
·
Supported OS
ü Canonical Ubuntu LTS
ü Citrix XenServer
ü Microsoft Windows Server
with Hyper-V
ü Red Hat Enterprise Linux
ü SUSE Linux Enterprise
Server
ü VMware ESXi
·
Power
ü Titanium 750W, Platinum
495W, 750W, 1100W,
ü 1600W, and 2000W
ü 48VDC 1100W, 380HVDC
1100W, 240HVDC 750W
ü Hot plug power supplies
with full redundancy
ü Up to 6 hot plug fans
with full-redundancy, high-performance fans available
