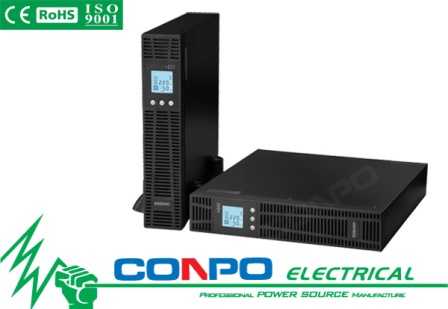

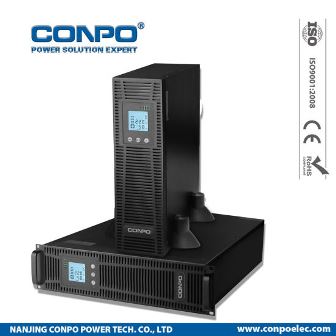

MODEL - RMT2K

Serial /RMT

RMT2K

Capacity

2KVA/1.6KW

Input

Voltage

110~300VAC

Frequency

50/60Hz±10%

Output

Voltage

220/230Hz±1%VAC

Frequency

50/60Hz±0.5(Battery mode)

Output Wave Form

Pure Sine Wave

Transfer time

Zero

Battery Voltage(VDC)

48/72/96

Battery type

Free maintenance valve regulated lead-acid battery

Overload Capability

105%-125%

10s

Switch to bypass after 1minute

125%-135%

200ms

Switch to bypass after 30 seconds

>135%

200ms

Switch to bypass after 100ms

Crest Ratio

3:1(max)

Distortion (full load)

Linear Load

<3%

Non-linear load

<5%

Communication interface

RS232 or USB interface + SNMP

working temperature

0℃~40℃

Relative humidity

0%~90% (non-condensing)

Dimension

(W×D×H)mm

430×480×88mm(2U)

Standard

2U+2U

Long run

2U

Weight(kg)

27/30
