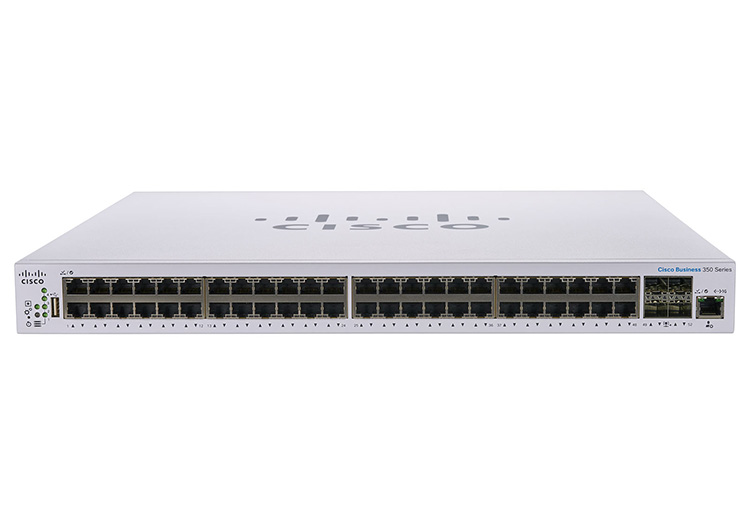

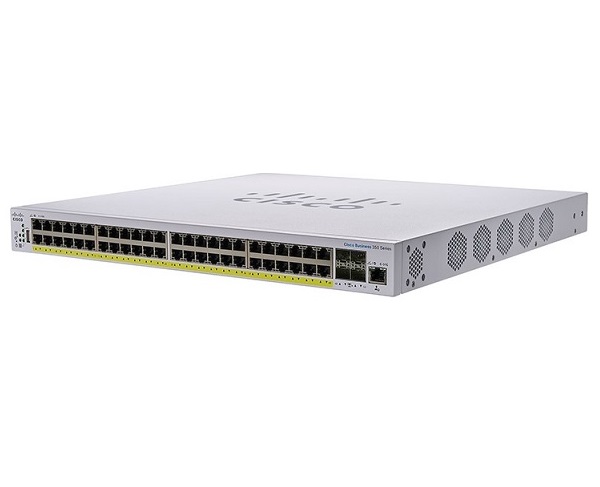

CBS350-48FP-4G-EU

Model

CBS350-48FP-4G-EU

Performance

Capacity in millions of packets per second (mpps) (64-byte packets)

77.38 mpps

Switching capacity

104Gbps

General

Jumbo frames

Frame sizes up to 9K bytes. The default MTU is 2K bytes

MAC table

16K addresses

Hardware

Total System Ports

52 x Gigabit Ethernet

RJ-45 Ports

48 x Gigabit Ethernet

Combo Ports (RJ45 + Small form-factor pluggable [SFP])

4 x SFP

Number of Ports That Support PoE

48

Power Dedicated to PoE

740W

Console port

Cisco standard mini USB Type-B/RJ45 console port

USB slot

USB Type-A slot on the front panel of the switch for easy file and image management

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Flash

256 MB

CPU

800 MHz ARM

DRAM

512 MB

Packet buffer

3 MB

Power consumption (worst case)

System Power Consumption

110V=73.79W
220V=74.03W

Power Consumption (with PoE)

110V=886.42W
220V=859.50W

Heat Dissipation (BTU/hr)

3,024.59

Environmental

Unit dimensions (W x D x H)

445 x 350 x 44 mm

Unit weight

5.82 kg

Power

100-240V, 50-60 Hz, internal, universal

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

-5° to 50°C

Storage temperature

-25° to 70°C

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Acoustic noise and Mean Time Between Failure (MTBF)

FAN (Number)

1

Acoustic Noise

25°C: 48.7 dBA

MTBF at 25°C (hours)

856,301
