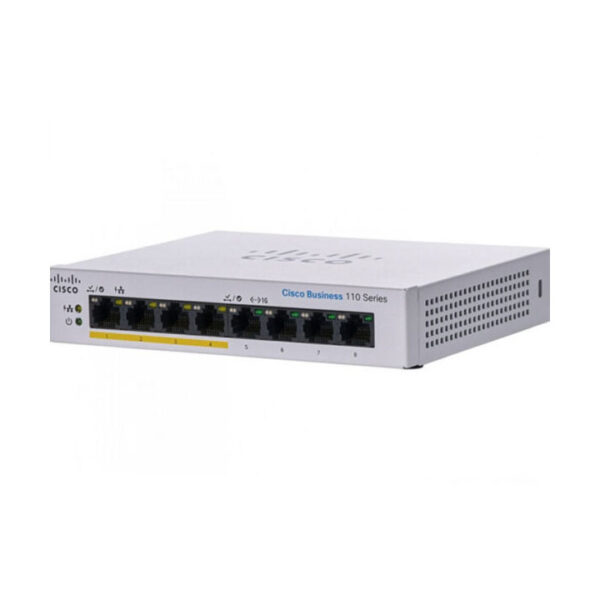

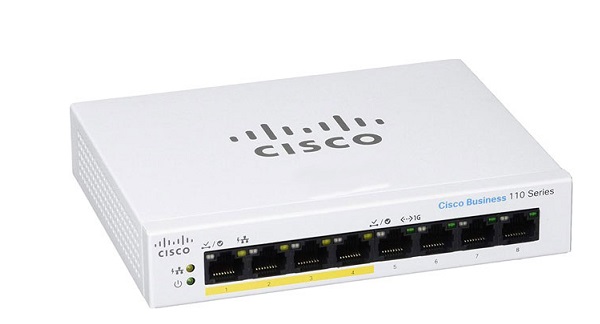

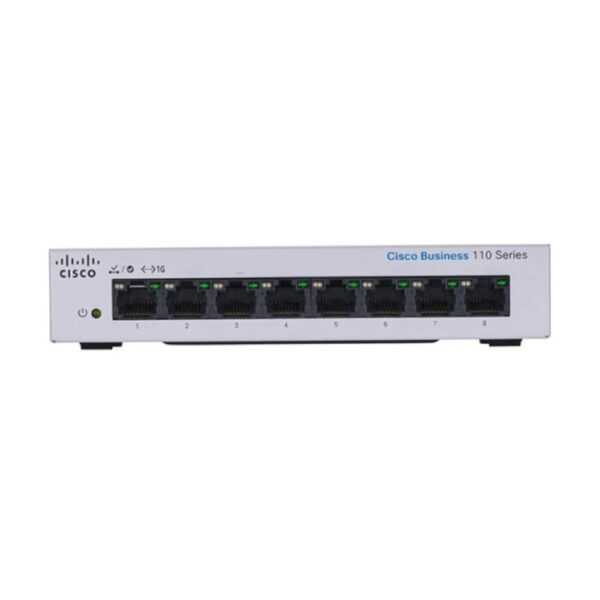

Cisco CBS110-8PP-D-EU
|
|
Switching capacity in gigabits per second (Gbps)
|
16 Gbps
|
|
Capacity in millions of packets per second (mpps) (64-byte
packets)
|
11.9 mpps
|
|
General
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
MAC table
|
2K addresses for CBS110-5T-D
8K addresses for all other models
|
|
Jumbo frame
|
9216 bytes
|
|
Quality of Service (QoS)
|
802.1p priority based, 4 hardware queues, priority queuing and
Weighted Round-Robin (WRR)
|
|
Loop detection
|
Helps discover loops in the network to avoid broadcast storms
|
|
Cable diagnostics
|
Quickly identify and troubleshoot network cable faults and/or
shorts
|
|
Media-dependent interface
|
Automatic Media Dependent Interface (MDI) and MDI crossover
(MDI-X)
|
|
Standards
|
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast
Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit
Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient
Ethernet, 802.3af, Power over Ethernet
|
|
Hardware
|
|
Ports
|
8 Gigabit Ethernet
|
|
Power dedicated to PoE
|
32W
|
|
Number of ports that support PoE
|
4
|
|
LEDs
|
Power, link/activity (cable diagnostics, loop detection),
Gigabit, PoE, Max PoE, if present
|
|
Cabling type
|
Category 5e or better
|
|
Mounting options
|
Desktop, wall-mount or rack mount
|
|
Physical security lock
|
Kensington lock slot
|
|
Packet buffer
|
2 Mbit
|
|
Environmental
|
|
Unit dimensions (W x D x H)
|
160 x 129 x 30 mm (6.30 x 4.07 x 1.18 in)
|
|
weight
|
0.55 kg (0.52 lb)
|
|
Power
|
DC 12V, 1.0A
|
|
System power consumption
|
110V=5.1W
220V=5.29W
|
|
Power consumption (with PoE)
|
110V=38.02W
220V=38.2W
|
|
Heat dissipation (BTU/hr)
|
130.34
|
|
Operating temperature
|
32° to 104°F (0° to 40°C)
|
|
Storage temperature
|
–4° to 158°F (–20° to 70°C)
|
|
Operating humidity
|
10% to 90%, relative, noncondensing
|
|
Storage humidity
|
5% to 90%, relative, noncondensing
|
|
Acoustic noise and Mean Time Between Failures (MTBF)
|
|
Fan (number)
|
Fanless
|
|
MTBF at 25°C (hours)
|
465,437
|
