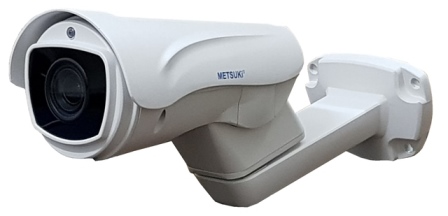

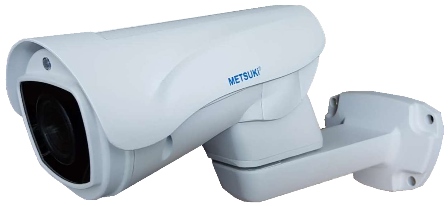

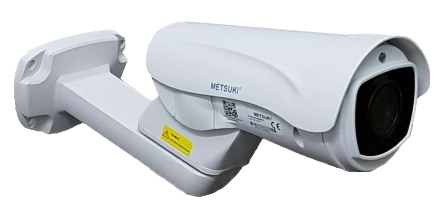

MODEL MS-8620MP

MODEL MS-8620MP

Image Sensor

1/2.5" Aptina 5MP High-resolution CMOS Sensor

Horizontal Resolution

5MP

Compression

H.264/H.265

S/N Ratio

>50db

PTZ

Horizontal Rotation Speed

30°/S

Horizontal Rotation Range

0°~200°

Tilt Rotation Speed

25°/S

Tilt Rotation Range

-45°~40°

Preset Points

220

Guard Tours

3 groups

Guard Points

Max.16 points

Lens

Focus Length

5.1mm-51mm

Focus Control

10X Optical Zoom

Night Vision

Infrared LED

35µx4PCS

IR Range

30m

Day-night mode

AUTO

Network

Network protocol

TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P

ONVIF

Support

Network interface

Built-in RJ45 network interface,support 10M/100M IP DATA

Stream type

Main Stream / Sub Stream / MJPEG

Interface

Audio

Optional

Alarm

/

POE

Optional

General

Weatherproof

IP66

Operating Temperature

Indoor: 0°~ +40°   Outdoor:  -40°~ +60°

Operating Humidity

≤90% Non Condensing

Power

DC12V/3A

Lightning Protection

Transient voltage 6000V

Dimension

39.6x19.6x16(cm)

Weight

3Kgs
