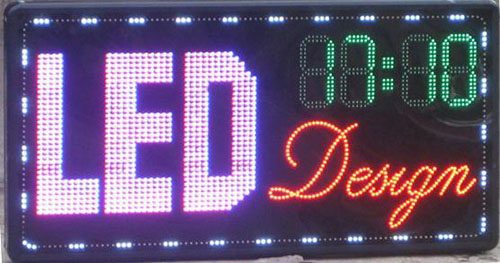

LED P10 Phun màu

Display and control feature

Structure feature

Specification

Parameter

Specification

Parameter

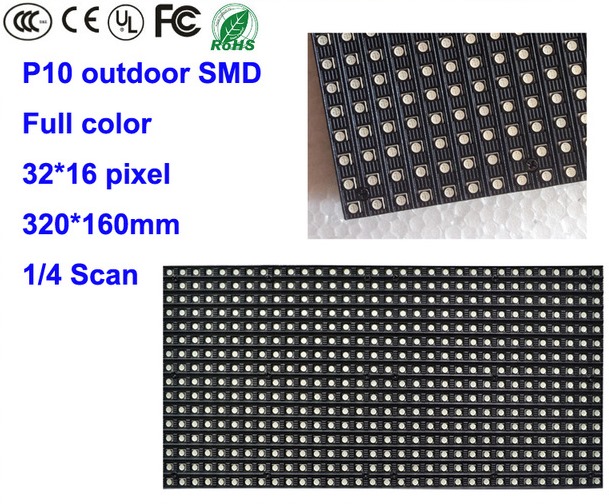

Pixel Pitch

10 mm

Module size

320 mmx160 mm

Pixel composing

1R1G1B

Display resolution

32x16 pixel

Wavelength ®

620-630nm

Standard cabinet size

960 mmx960 mm

Wavelength (G)

520-535nm

Weight per sqm

65 Kg/sqm

Wavelength (B)

465-475nm

Protection classification

IP65

Wave Angle (H)

110°(H)/ 60°(V)

Install mode

Wallmount, hung and stand structure

LED package

SMD3535

Cabinet Material

Iron/Aluminum

Density per sqm

10000 pixel

Driving Method                  1/2 scnning

Display color

256*256*256

Specification

Parameter

Whiteness brightness

≥6500

Working voltage

AC 220v/380v±10% 47~64Hz

Brightness level

128 grade

Max power/sqm

750W/sqm

Changing frame frequency

60 Hz

Average power/sqm

350W/sqm

Refresh

400 Hz

Short circuit protection

Yes

Driving method

Constant Static

Led Lamp type

Red:Opto Blue:Silan Green:Silan

Control mode

synchronous

Working environment

Display port

DVI

Specification

Parameter

Display mode

960*960 /1280*960

Environment

Outdoor

Out of control

1/10,000 ( scattered)

Working temperature

-20~60°C

lifetime

100,000 hours

Working Humidity

10~90%
