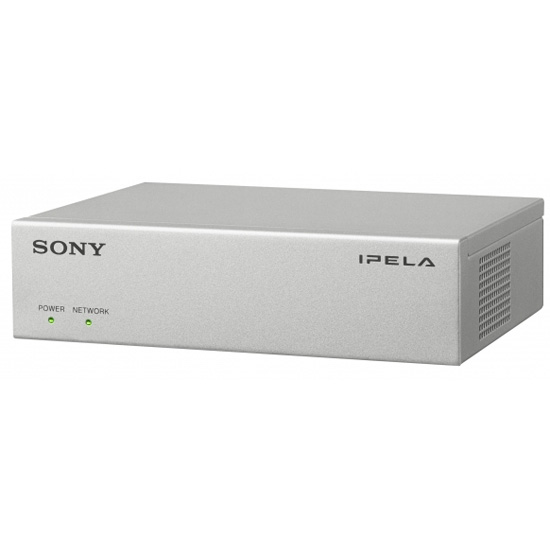

| SONY PCS-MCS1 |
| Communication Protocol Standards |
H.261*2, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3 |
| NETWORK |
| Protocols |
TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP |
| QoS (Quality of Service) |
Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control) |
| Others network features |
NAT, IP Precedence/DiffServe, UDP Shaping, TCP/UDP Port Setting, Auto Gatekeeper Discovery, Packet Reordering, URI Dialing |
| Video Standard |
| Resolution (4:3) |
QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) |
| Resolution (16:9) |
wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080i (1920 x 1080) |
| Maximum Frame Rate |
H.261 QCIF 30 fps, CIF 30 fps; H.263 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps; H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps, 1080p 60 fps |
| Bit Rate |
64 kbps to 16,000 kbps |
| Screen Layout |
Full Screen, PinP, PandP, SideBySide, PandPandP |
| Other Features |
Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction |
| Audio Standard |
| Bandwidth and Coding (MPEG-4 AAC Stereo) |
22 kHz at 192 kbps (IP only) |
| Bandwidth and Coding (MPEG-4 AAC Mono) |
14 kHz at 48 kbps, 64 kbps, 96 kbps |
| Bandwidth and Coding (MPEG-4 AAC Mono) |
22 kHz at 64 kbps, 96 kbps (IP only) |
| Bandwidth and Coding (G.711) |
3.4 kHz at 56 kbps, 64 kbps |
| Bandwidth and Coding (G.722) |
7.0 kHz at 48 kbps, 56 kbps, 64 kbps |
| Bandwidth and Coding (G.728) |
3.4 kHz at 16 kbps |
| Multipoint Capability |
Up to 9 sites (H.323) with optional software PCSA-MCG109. (6 sites with H.320), 10 to 16 sites (H.323) requires two PCS-XG100S units with optional software PCSA-MCG109 using cascaded connection. (10 sites with H.320)
|
| Data Sharing |
PC images up to 1080p resolution is supported.Video annotation function is available. |
| Lip Synchronization |
AUTO/OFF |
| Streaming/Recording Feature |
Video: 512 kbps to 1 Mbps (2-step), Audio: 64 kbps |
| INTERFACE |
| Video input |
External video inputs (HDMI x 1, DVI-I x 2) |
| Video output |
HDMI x 2, DVI-I x 1 |
| Control Input |
RS-232C x 1 |
| Audio input |
External analog microphone input Mini-jack (Plug in power) x 2 (L/R) Audio Input (MIC/AUX) x 1 (RCA pin, stereo) |
| Audio output |
Headphone Output (Mini, Stereo) x1, REC Output (Pin, Stereo) x1 |
| Network Port |
10BASE-T/100BASE-TX x1, ISDN Unit Interface x1 |
| Control |
RS-232C |
| Maintenance Interface |
RS-232C x 1 |
| Others |
USB x 2 (Pen Tablet, USB Memory) |
| Standards |
| Communication Protocol Standards |
ITU-T H.320, H.323, IETF SIP |
| ITU-T (exclude audio/video standards) |
H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19 |
| IETF |
RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168 |
| Encryption |
H.233, H.234, H.235 ver.3 |
| Far End Camera Control |
H.224, H.281 |
| Frame Format |
H.221, BONDING, H.225.0 |
| Dual Stream |
H.239 (video and presentation data) |
| GENERAL |
| Operating temperature |
5 to 35 °C (41 to 95 °F) |
| Operating humidity |
20 to 80% |
| Storage temperature |
-20 to 60 °C (-4 to 140 °F) |
| Storage humidity |
20 to 80% |
| Power requirements |
DC 19.5 V (AC Adapter: AC 100 to 240 V, 50/60 Hz) |
| Power consumption |
58.5W (23.4W, Standby) |
| Dimensions (W x H x D) |
Approx. 370 x 60 x 244 mm (excluding protrusions), Approx. 14 5/8 x 2 3/8 x 9 5/8 inches (excluding protrusions) |
| Mass |
Approx. 2.3 kg |
