Home / Product/ SOLAR POWER / Inverter SMA/ SMA Model STP 20000TL

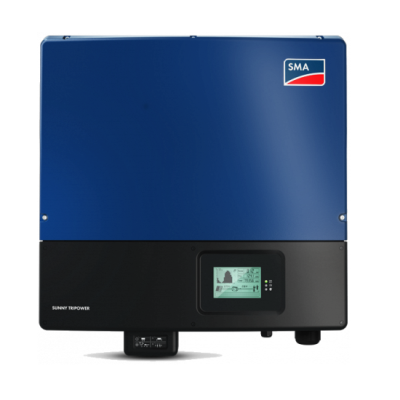

SMA Model STP 20000TL

Inverter SMA STP 20000TL

Technical Data Sunny Tripower: 20000TL

Input (DC)  Max. DC power (@ cos φ = 1) 20440 W 25550 W

Max. input voltage 1000 V 1000 V

MPP voltage range / rated input voltage 320 V to 800 V

Min. input voltage / start input voltage 150 V/188 V

Max. input current input A / input B 33 A / 33 A

Number of independent MPP inputs / strings per MPP input 2/A:3; B:3 2/A:3; B:3

Output (AC) Rated power (@ 230 V, 50 Hz) 20000 W

Max. AC apparent power 20000 VA

AC nominal voltage 3/N/PE; 220/380 V

Nominal AC voltage range 160 V to 280 V

AC grid frequency / range 50 Hz, 60 Hz /-6 Hz to +5 Hz

Rated power frequency / rated grid voltage 50 Hz / 230 V

Max. output current 29 A

Power factor at rated power 1

Adjustable displacement power factor 0 overexcited

Feed-in phases / connection phases 3 / 3

Max. efficiency / European Efficiency 98.4 % / 98.0 %

Dimensions (W / H / D) 665/690/265 mm

Weight 61 kg (134.48 lb)

Operating temperature range -25 °C to +60 °C

Noise emission (typical) 51 dB(A)

Self-consumption (at night) 1 W

Degree of protection (as per IEC 60529) IP65

Climatic category (according to IEC 60721-3-4) 4K4H

Maximum permissible value for relative humidity (non-condensing)
